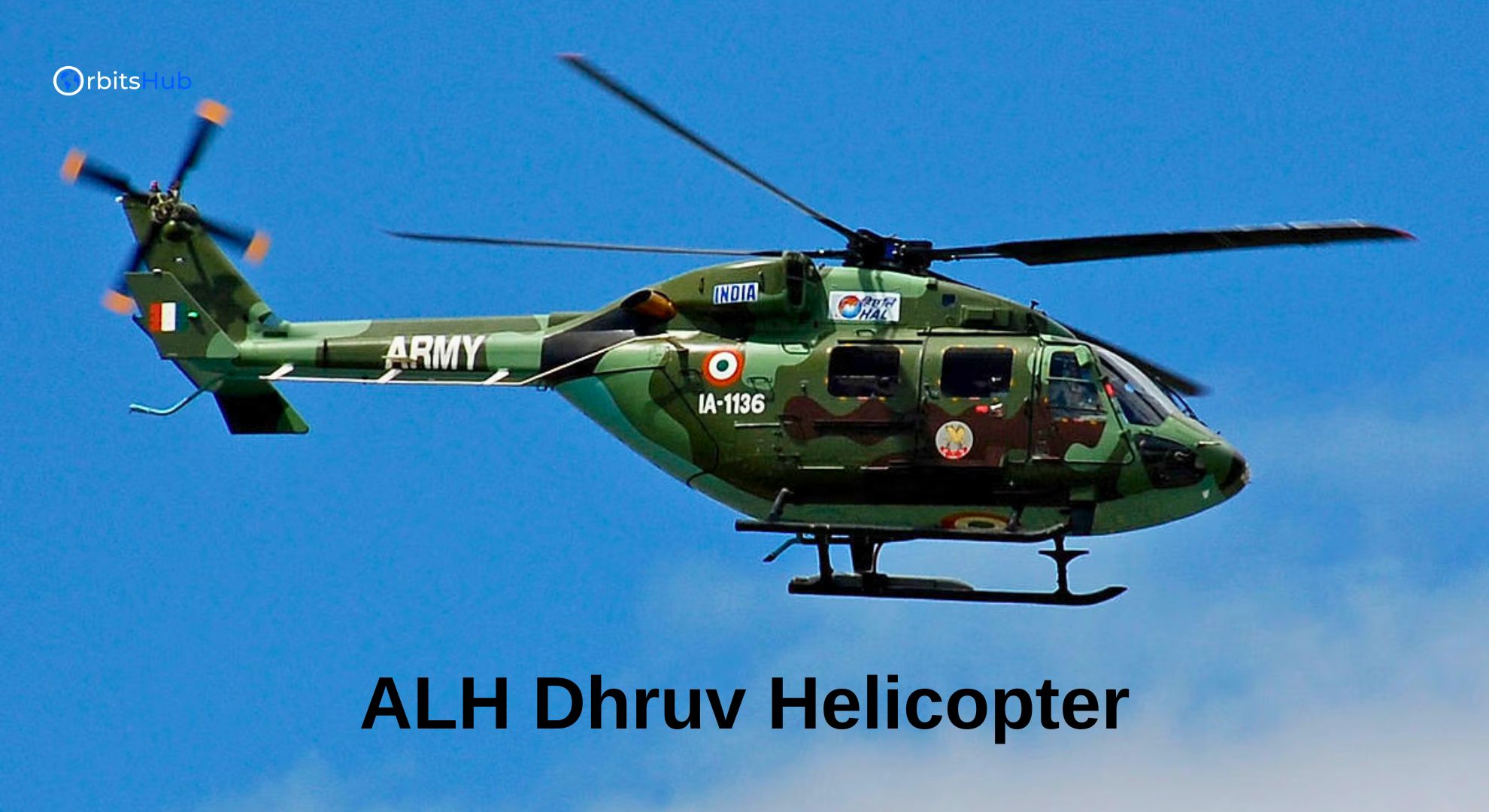

The ALH Dhruv, also known as the Advanced Light Helicopter, is a versatile workhorse of the Indian aviation industry. Hindustan Aeronautics Limited (HAL) has built and produced the Dhruv, an aircraft that has found widespread use in both the Indian Air force and commercial sectors. This blog post delves into the technical specifications and performance capabilities of the ALH Dhruv, offering a comprehensive overview of this remarkable helicopter.
Variants of the ALH Dhruv
The ALH Dhruv comes in several variants, each tailored for specific missions. Here’s a quick breakdown of the prominent versions:
- Dhruv Mk I & Mk II: These initial variants feature Turbomeca TM 333 2B2 engines and a conventional cockpit layout. They are suitable for troop transport, utility, and reconnaissance.
- Dhruv Mk III & Mk IV: The upgraded versions boast more powerful Shakti engines (co-developed by HAL and Turbomeca) and a modern glass cockpit. These variants offer enhanced performance and capabilities for combat missions, casualty evacuation, and high-altitude operations.
- Weapon System Integrated (WSI) variant: This specialized Dhruv is armed for attack missions. It features armour plating, a nose-mounted gun turret, and provisions for carrying rockets and missiles.
- Naval Dhruv: This variant is designed for shipboard operations. It has a wheeled landing gear, foldable rotor blades, and additional maritime patrol and surveillance equipment.
Technical Specifications of the ALH Dhruv
- Dimensions: Length (rotors turning): 15.87 meters (52 ft 1 in)
- Width: 3.15 meters (10 ft 4 in)
- Height (with skids): 4.98 meters (16 ft 4 in)
- Weight: Maximum Take-off Weight (MTOW): 5,800 kg (12,787 lb) with skids, 4,445 kg (9,800 lb) with wheels
- Empty Weight: 2,550 kg (5,622 lb)
- Powerplant: 2 x HAL/Turbomeca Shakti-1H turboshaft engines, generating 1,068 kW (1,432 hp) each
- Speed Limit: 250 km/h (155 mph) at maximum power
- Cruise Speed: 220 km/h (137 mph)
- Range: 700 km (435 mi)
- Service Ceiling: 6,500 meters (21,325 ft)
- Hover Ceiling (In Ground Effect): 4,572 meters (15,000 ft)
Key Performance Characteristics of the ALH Dhruv
The ALH Dhruv boasts impressive performance capabilities that suit diverse applications. Here are some noteworthy aspects:
- High Maneuverability: The Dhruv’s design and powerful engines provide excellent agility, allowing precise manoeuvres and operation in tight spaces.
- Hot and High Performance: The Shakti engines offer exceptional power, enabling the Dhruv to operate effectively in hot and high-altitude environments like the Himalayas.
- All-Weather Capability: Dhruv’s sophisticated avionics and de-icing systems allow it to fly in various weather conditions, including dust storms, rain, and snow (variant dependent).
- Glass Cockpit (Mk III & Mk IV variants): The modern glass cockpit enhances pilots’ situational awareness and simplifies operations, even during demanding missions.
- Low Operating Costs: The Dhruv is known for its fuel efficiency and ease of maintenance, making it a cost-effective option for operators.
Applications of the ALH Dhruv
The versatility of the ALH Dhruv translates into a wide range of applications across military and civilian sectors. Here’s a glimpse into its diverse roles:
- Military: Troop transport, reconnaissance, casualty evacuation, light attack missions (WSI variant), high-altitude operations.
- Paramilitary and Law Enforcement: Border patrol, counter-insurgency operations, disaster relief.
- Civilian: Disaster relief, search and rescue, medical evacuation, aerial photography, electronic news gathering (ENG).
Safety Features of the ALH Dhruv
Safety remains paramount in any aviation operation. Here’s a glimpse into the safety features incorporated into the ALH Dhruv:
- Crash-Resistant Design: The fuselage’s impact-absorbing construction gives Dhruv passengers a better chance of surviving a collision.
- Dual Engine Redundancy: The twin-engine configuration provides redundancy, allowing the helicopter to continue controlled flight even if one engine fails.
- Advanced Avionics (Mk III & Mk IV): The glass cockpit displays critical flight information and incorporates warning systems to alert pilots of potential hazards.
- Automatic Flight Control System (AFCS) (Optional): This feature (available on some variants) can assist pilots in maintaining stable flight, especially during challenging weather conditions or demanding manoeuvres.
- Emergency Locator Beacon (ELT): In an emergency, the ELT transmits a distress signal, aiding search and rescue efforts.
HAL prioritizes safety in the Dhruv’s design and development. These features and proper pilot training and maintenance procedures contribute to Dhruv’s commendable safety record.
A Reliable and Versatile Helicopter
The ALH Dhruv Helicopter has established itself as a prominent helicopter platform in India. Its robust performance, manoeuvrability, and adaptability make it valuable for various missions. With ongoing upgrades and new variants under development, the Dhruv is poised to remain a mainstay in the Indian aviation scene for years.
