ECDIS is an advanced navigational system used by ships. It combines electronic charts with radar, GPS, and other navigational aids to provide a comprehensive view of the ship’s position about its surroundings. ECDIS allows for safer navigation, more efficient route planning, and real-time updates on weather conditions, sea state, and other essential factors that can affect a ship’s voyage. This system has become increasingly popular due to its ability to improve safety at sea and reduce the risk of human error in navigation. The purpose of an ECDIS is to provide more accurate, safe navigation for the ship. This system combines radar, GPS, and other navigational aids for greater accuracy and faster route planning. It also provides real-time updates on weather conditions, sea state, and other essential factors that can affect a voyage at sea. An ECDIS has become increasingly popular due to its ability to reduce the risk of human error in navigation while improving safety at sea.

Electronic Chart Display And Information System (ECDIS)

An improvement in the nautical chart system used by ships and navy vessels is the Electronic Chart Display and Information System (ECDIS). The marine crew of a ship now has an easier time locating specific places and obtaining directions thanks to the usage of computerized charts.

what-is-a-ecdis

By showing specific information from a System Electronic Navigational Chart, ECDIS conforms with IMO Regulations V/19 and V/27 of the SOLAS convention as modified (SENC). Paper charts can be replaced with ECDIS technology that complies with SOLAS regulations.

Along with increasing navigational safety, automated features like route planning, route monitoring, automatic ETA computation, and ENC updating considerably reduce the effort of the navigator. Other advanced navigation and safety functions offered by ECDIS include continuous data recording for later analysis.

The ECDIS uses the Global Positioning System (GPS) function to identify navigational locations accurately. Additionally, it should be emphasized that the ECDIS complies with the rules established by the International Maritime Organization, which increases the reliability of the electronic chart system.

In its simplest form, ECDIS is a navigational information system that interfaces with various navigational tools like the GPS, Gyro, RADAR, ARPA, Echo Sounder, and others.

Additionally, ECDIS includes and displays data from other nautical publications like tide tables and sailing directions and data from other sources, including radar, weather, ice conditions, and automatic vessel identification.

What Are The Uses Of ECDIS In Ship?

what-are-uses-of-ecdis

ECDIS is a computer-based navigation system used on ships to provide navigational information. It is used to display electronic charts and other navigational data and provide route planning, monitoring, and tracking capabilities. ECDIS is an essential tool for the safe navigation of ships, allowing the crew to make informed decisions about their voyage. Using ECDIS helps reduce the risk of human error in navigation and increases safety at sea. It also allows for faster passage planning, improved situational awareness, and better decision-making when navigating difficult conditions. ECDIS can also be used to monitor vessel performance, such as speed over ground or fuel consumption, helping ship operators save time and money. ECDIS is now mandatory on larger vessels in most countries. Although the development and use of electronic navigation were not new, the introduction of ECDIS technology marked a significant change in modern navigation. Electronic navigational systems have been used since the late 1970s, but they were designed primarily to support military operations. Early electronic charts needed more features and required manual updating by the navigator, making them less useful than paper charts. The addition of graphical displays and digital presentation increased awareness of what could be done with computers in chart display, opening up possibilities for how freely data could be shown on screens and changes.

How To Use ECDIS In Ship?

ECDIS is a technology used in the maritime industry to help ships navigate safely. ECDIS provides a digital platform for navigation and replaces traditional paper charts. It also allows ships to identify obstacles in their path and avoid them. The system combines data from various sources, such as weather, maritime notes, and route planning, into one digital platform on a tablet or computer.

how-to-use-ecdis

ECDIS is used by mariners to plan, monitor, and execute safe voyages on the sea. It helps them to track their ship’s position, speed, heading, course over ground, distance traveled, and other important information related to their voyage. In addition, ECDIS can also be used for route planning by providing detailed information about the terrain of the sea floor and any potential hazards that may lie ahead. With its user-friendly interface, ECDIS makes it easier for mariners to understand the navigation data they are presented with. A navigation chart is a detailed map showing an area’s coastline or waters. They are drawn to scale, are accurate, and can be used for several purposes in navigation. , including calculations of distances, speed, and direction. They can also be used in chart plotting to give the position of any point on the chart. A navigation chart is sometimes called a maritime chart or nautical atlas. Nautical charts are available on ECDIS displays and have been made more accurate with improved cartography in recent years, thanks to modern GPS receivers and computer mapping programs. In addition, they are now being made interactive so that they can be downloaded onto one’s tablet or smartphone for use when away from shore. The precision of these new interactive charts is limited

Troubleshooting The Electronic Chart Display And Information System

Troubleshooting the Electronic Chart Display and Information System (ECDIS) on a ship can be daunting, especially when you are in unfamiliar waters. The ECDIS is a complex system that requires knowledge of navigation and charting systems to operate correctly—troubleshooting the ECDIS on a ship and tips for avoiding potential problems. We will also discuss everyday use cases for troubleshooting the ECDIS, including data entry errors, software issues, hardware malfunctions, and more. ECDIS is functioning correctly so that your voyage is safe and successful. The ECDIS is a complex system and requires knowledge of navigation and charting systems to operate correctly. Common Use Cases of Troubleshooting the ECDIS: Data entry errors: If you receive a data entry error while working on the ECDIS, your data will likely be saved incorrectly. Keep your data and clear the system cache using a command keystroke as a first step in troubleshooting this issue. Software issues: Many software-related problems can be resolved by simply restoring or re-installing the software of your choice. Hardware malfunctions: If you are experiencing any issues with the hardware components of your ECDIS, such as malfunctioning displays or buttons, it might be time for an upgrade!

troubleshooting-ecdis

Ambiguous Presentation Of Sector Lights

Sector lights are beacons that direct ships to avoid rugged terrain, such as underwater obstructions, using several hue light beams. Lights are on a separate layer and turned off by default in the ECDIS sector. The ECDIS sector light icons do not relate to the specific hazard they indicate, in contrast to the paper chart equivalents. To be sure of their meaning, the officer must study pilot documentation. The officer did see the sector light in the Nova Cura collision, but he mistook it for another shallow spot on the road. The safety board concluded that interpretation mistakes are possible because the ENC chart’s sector light indicator is not apparent.

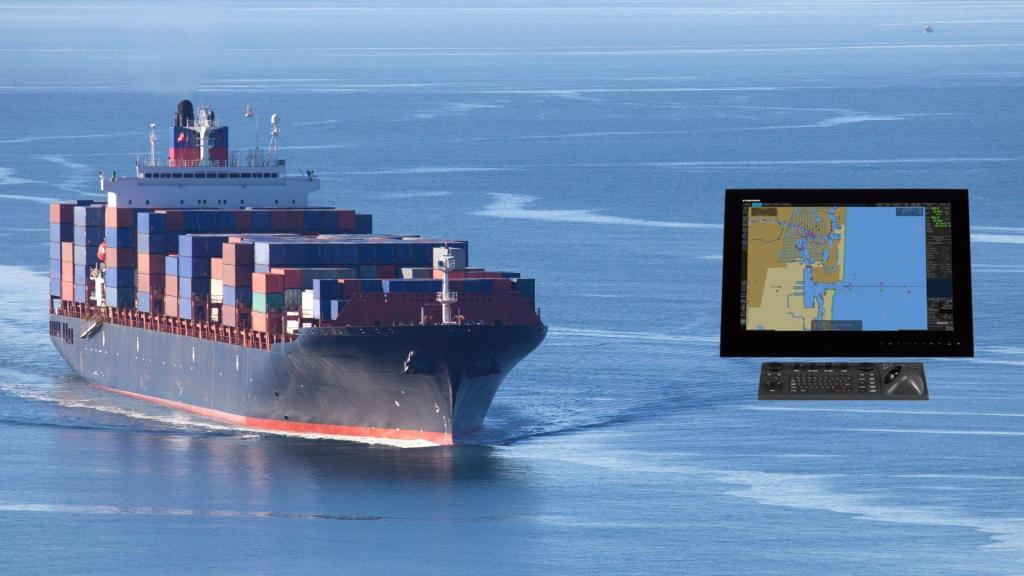

Best ECDIS In The Market For Ship

(ECDIS) is a computer-based navigation system used on board ships that display nautical charts, navigation-related information, and aids in navigation. It is the best tool for boats, providing detailed and accurate navigational data. ECDIS helps reduce the risk of errors associated with manual chart plotting, navigational data entry, and route planning. It also allows captains to monitor their ship’s position in real time, enabling them to make safe and efficient decisions while navigating through hazardous waters. The use of ECDIS has become mandatory for all commercial vessels since 2018 as per International Maritime Organization (IMO) regulations. . ECDIS is similar to the air traffic control system in airplanes Electronic A computer-based navigation information system called the Chart Show and Information System (ECDIS) is used on board ships to display nautical charts, navigation-related data, and aids to navigation. Its detailed and precise navigational data makes it the greatest instrument for boats. By automating navigational data entry, route planning, and chart drawing, ECDIS lowers the chance of human mistakes. Additionally, it enables captains to track their ship’s location in real time, helping them make smart choices when navigating through dangerous seas.

best-ecdis-in-the-market

Simrad ECDIS

An ECDIS is a geographic information system that complies with International Maritime Organization (IMO) regulations and can replace nautical paper charts.

Paper charts can be replaced with ECDIS equipment that complies with SOLAS regulations. Along with improving navigational safety, ECDIS reduces the effort of the navigator by automating tasks, including route planning, route monitoring, ETA computation, and ENC updating. Other advanced navigation and safety features offered by ECDIS also include continuous data recording for later study.

The Simrad ECDIS systems have Type-Approval, are reasonably priced, and have cutting-edge, simple user interfaces.

ECDIS Navigator VIII

Navigator VIII’s features of a multi-touch screen interface have changed how it is controlled and made it one of the easiest ECDIS systems to use on the market. Only the features that the end user will actually use are included to prevent overcomplicating the system. Minimize any downtime and daily operational disruption. The navigator VIII ECDIS is easy to install and configure thanks to smart, straightforward features.

The system routinely establishes monitoring functions and automatically recognizes any sensors it is connected to. Simple, clear solutions increase efficiency and safety at sea while still being reasonably priced. They have been created with the end-user in mind and need only very brief training.

Furuno ECDIS FMD-3200/FMD-3300

Both the user interface and functionality of the ECDIS FMD-3200 (with a 19″ LCD) and FMD-3300 (with a 23.1″ LCD) have been greatly improved.

In order to provide the operator with direct access to the required operational method, the ECDIS uses intelligently structured Graphic User Interface elements that supply a task-based operating scheme.

The new ECDIS also uses an advanced chart-drawing engine, providing instantaneous chart redrawing and seamless zooming and panning, making ECDIS operation stress-free.

Additionally, the ECDIS will introduce a simplified chart management system that will make chart administration simple and independent of the chart providers. The Admiralty Information Overlay and Jeppesen Dynamic Licensing are both supported by the ECDIS (AIO).

This ECDIS will be a suitable candidate for new installation and retrofit to fulfill ECDIS obligatory carriage that is phasing in from July 2012 onwards because it fully complies with the performance level of ECDIS stated in IMO resolution MSC.232(82).

Contact us to learn more.



Related FAQs

The purpose of ECDIS (Electronic Chart Display and Information System) is to provide additional information in addition to chart data and attributes that alert the ship’s navigator as it approaches or enters potentially dangerous areas.



The following sensors feed data into ECDIS: the GPS or DGPS (global positioning system). The method of Automated Identification System (AIS) and Automatic Radar Plotting Aids (ARPA).





Electronic Navigational Charts (ENC) are part of an ECDIS, which also incorporates location data from the GPS and other navigational sensors, including RADAR, a fathometer, and automated identification systems (AIS).



According to IMO ECDIS Performance criteria, there are five obligatory alarms: crossing the safety contour, veering off the path, positioning system failure, approaching the critical point, and different geodetic datum.





If the information is presented at a scale that is greater than that of the ENC, or if an ENC covers its own ship’s position at a scale more significant than that of the display, ECDIS should make it clear.







According to the updated SOLAS rule V/19, all newly constructed passenger ships with a gross tonnage of 500 or more and newly constructed cargo ships with a gross tonnage of 3,000 or more that are involved in international voyages must be equipped with ECDIS.



The vessel should proceed at a safe pace in crowded seas and locations with high traffic in the event that both ECDIS fail.
