Ship Parts – A Complete Guide to Understanding the Key Components of a Vessel

The Bow: Understanding the Front Section of a Ship

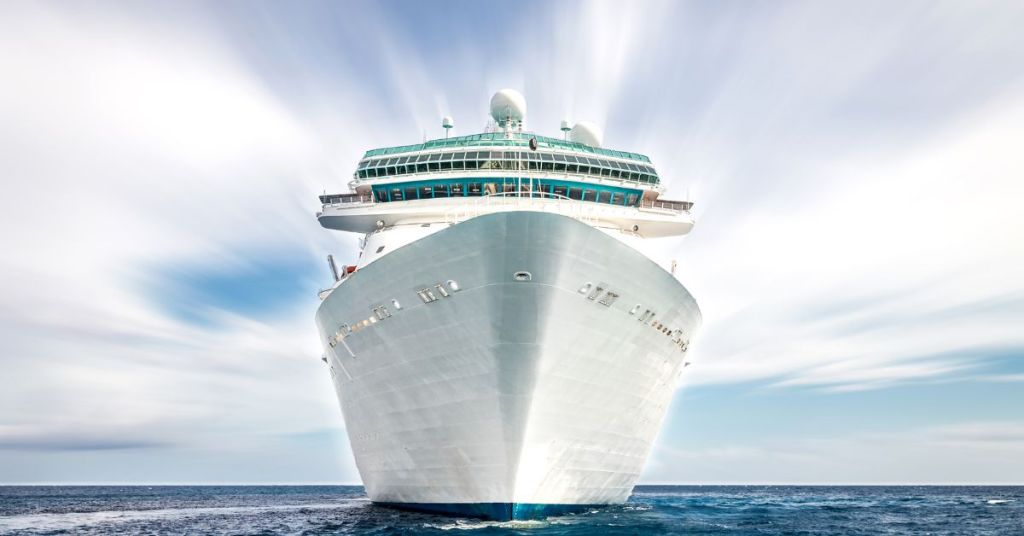

Let’s start our adventure at the very forefront of a vessel – the ship bow! Picture this: as the ship gracefully glides through the water, the bow proudly slices through the waves, paving the way for a smooth voyage. The bow is not just a pretty facade; it plays a vital role in cutting through the water resistance, reducing drag, and enhancing fuel efficiency. A well-designed bow ensures better stability and helps the ship tackle rough seas with grace.

Bow Structure

The design of the bow structure is crucial for a ship’s hydrodynamic performance. The sharp, pointed shape of the bow minimizes water resistance, allowing the vessel to slice through waves more efficiently. This streamlined design not only enhances the ship’s speed but also reduces fuel consumption, making it an essential aspect of modern shipbuilding.

Bow Design

Different types of bows are employed based on the ship’s intended use and navigational requirements. For high-speed vessels, a raked bow is preferred, as it offers reduced resistance at high velocities. On the other hand, flared bows are commonly used for offshore vessels and ships operating in rough seas. These bows feature an outward curve, dispersing waves and reducing the likelihood of water breaking over the deck.

Bow Functionality

Beyond its hydrodynamic advantages, the bow’s shape plays a vital role in providing better stability, especially in rough seas. As the ship encounters waves head-on, the shape of the bow ensures the vessel can ride over the waves rather than being tossed around by them. This not only makes the voyage more comfortable for passengers but also minimizes stress on the ship’s structure, contributing to its longevity and safety.

How Do Different Bow Designs Impact The Performance And Efficiency Of Ships?

A ship’s performance and efficiency in different environments are heavily dependent on the bow (or bow design) of the vessel. Different bow designs can have a significant impact on a ship’s hydrodynamics, stability, resistance, speed, fuel efficiency, seakeeping abilities, and overall safety. Below are some common bow designs and their effects on ship performance and efficiency:

Bulbous Bow

The bulbous bow is a unique and highly effective design element located underwater, usually at the forward part of the ship’s hull. It has a bulb-like protrusion that disrupts the natural flow of water around the bow. When the ship moves through the water, it creates a bow wave – the wave formed at the front of the ship due to its movement. The bulbous bow reshapes this wave, causing it to interfere constructively with the stern wave (wave created at the rear of the ship), resulting in reduced wave-making resistance.

• Unique design with a bulb-like protrusion underwater.
• Reduces wave-making resistance by reshaping the bow wave.
• Improves fuel efficiency by minimizing resistance, making it ideal for large vessels.
• Commonly used in container ships, tankers, and other fuel-intensive vessels.

This reduction in resistance is the primary advantage of the bulbous bow and is of utmost importance in the maritime industry. By minimizing the wave-making resistance, the ship can achieve higher speeds with less power. As a result, the vessel’s fuel efficiency improves, resulting in significant savings and a smaller footprint on the environment. For large container ships, tankers, and other vessels that traverse long distances and rely on fuel economy, the bulbous bow design is an invaluable asset.

Clipper Bow

The clipper bow design is renowned for its historical significance and association with clipper ships, which were famous for their speed and agility during the golden age of sail. The key characteristic of the clipper bow is its sharp, pointed shape, which reduces resistance at the waterline.

• Historically associated with clipper ships known for their speed and agility.
• Features a sharp, pointed shape to reduce waterline resistance.
• Enables higher speeds, but may lead to slamming in rough seas.
• Less commonly used in modern ships due to structural stress concerns.

The reduced resistance allows the ship to achieve higher speeds, making the clipper bow ideal for vessels that prioritize fast travel. However, there is a trade-off. At high speeds or in rough seas, the clipper bow can lead to slamming, where the bow forcefully strikes the water surface. Slamming creates discomfort for passengers and can exert considerable stress on the ship’s structure, potentially compromising its integrity. As a result, modern ships tend to avoid extensive use of clipper bows, favoring other designs that balance speed and stability more effectively.

Flared Bow

The flared bow design presents a unique outward and upward slope from the waterline, giving the bow a broader and more rounded shape. This design enhances the ship’s stability and seakeeping abilities, particularly in challenging sea conditions.

• Slopes outward and upward from the waterline, providing a broader shape.
• Enhances stability and seakeeping abilities, reducing the risk of green water.
• Suitable for offshore vessels, research ships, and luxury yachts in rough conditions.
• Provides safety and comfort for passengers and crew.

Flared bows prevent the bow from sinking into oncoming waves, reducing the risk of green water over the bow — waves breaking and washing over the ship’s forward deck. This increases passenger and worker safety and protects sensitive equipment and cargo on deck. For offshore vessels, research ships, and luxury yachts that often encounter rough seas, the flared bow is a desirable feature.

Inverted Bow:

The inverted bow design, with its inward and downward slope from the waterline, creates a concave shape at the bow. This design is primarily utilized in high-speed vessels and certain military ships.

• Slopes inward and downward from the waterline, creating a concave shape.
• Reduces resistance at high speeds, contributing to improved performance and fuel efficiency.
• Commonly seen in high-speed vessels and some military ships for maneuverability.
• Enhances wave-piercing capabilities, ensuring a smoother ride during accelerations.

During high-speed operations, the inverted bow helps reduce resistance significantly. By piercing through the water more efficiently, the ship can achieve even higher speeds while consuming less fuel. The design also lowers wave effect on the ship’s hull during rapid accelerations and decelerations, making the voyage smoother for passengers and crew. The inverted bow shows how ship design evolves to increase dynamic performance.

Raked Bow:

The raked bow design is characterized by its backward slant at an angle from the waterline, providing a sleek and streamlined appearance. This design modification significantly reduces resistance as the ship moves through the water.

• Slants backward at an angle from the waterline, creating a streamlined appearance.
• Reduces resistance and allows the ship to maintain higher speeds with less power.
• Increases fuel efficiency, making it popular in passenger ships and ferries.
• Suitable for applications where eco-friendliness and cost-effectiveness are priorities.

By reducing resistance, the raked bow allows the ship to maintain higher speeds while requiring less power. This leads to improved fuel efficiency, making the design popular in modern passenger ships, ferries, and some naval vessels. The raked bow’s ability to optimize a vessel’s performance and minimize fuel consumption aligns perfectly with the industry’s push for eco-friendly and cost-effective solutions.

Straight Bow:

The straight bow design is the simplest and most straightforward among the bow designs, featuring a flat and vertical shape. While it lacks the intricate features of other designs, it remains a practical and cost-effective solution for smaller vessels and boats.

• Simple, flat, and vertical design commonly used in smaller vessels.
• Practical and cost-effective solution for specific applications.
• Seen in small pleasure boats, dinghies, and certain workboats.
• Balances functionality and affordability for smaller crafts.

The straight bow is commonly seen in small pleasure boats, dinghies, and workboats, where simplicity and ease of construction are paramount. It serves its purpose efficiently in specific applications, offering a balance between functionality and affordability.

Ship designers, naval architects, and maritime engineers must understand bow design and ship performance. They can choose the best bow design to improve a ship’s performance, fuel efficiency, and safety by carefully considering its needs, intended use, and environmental circumstances.

This pursuit of bow design innovation guarantees that ships have the most efficient and high-performing configurations, allowing them to navigate the oceans with accuracy and set new maritime industry standards.

How Bow Designs Contribute to the Stability and Maneuverability of Ships

When it comes to ships, the bow design is more than just a sleek aesthetic choice. It’s crucial in deciding how stable and responsive a ship will be in rough seas. Just like different cars are built for specific terrains, ships need the right bow designs to navigate efficiently through various environmental conditions. In this article, we’ll dive into the fascinating world of bow designs and explore how they contribute to a ship’s stability and maneuverability.

Riding the Waves: Wave Resistance Reduction

The way a ship interacts with waves can make or break its performance. A well-designed bow can significantly reduce wave resistance, allowing the ship to glide smoothly through the water. By minimizing wave resistance, the ship experiences less pitching and rolling, leading to increased stability and a more comfortable journey for everyone on board.

Picture this: you’re sailing on a ship with a bow that’s cutting through the waves like a hot knife through butter. Thanks to its clever design, the ship efficiently redirects the waves aside, offering a stable and steady ride even in rough seas. Say goodbye to that queasy feeling!

Bow Flare: Pushing Waves Away

Imagine the bow of a ship as a mighty shield, deflecting waves and keeping the vessel steady. Bow flare refers to the outward curvature of the bow above the waterline. A bow with significant flare can help improve stability by pushing waves away from the ship’s hull. This nifty feature is particularly crucial in rough seas, as it prevents the ship from being swamped, maintaining better stability, and preventing any unwanted water park adventures onboard.

As the ship encounters towering waves, the bow flare flexes its muscles, directing the waves away from the hull. It’s like watching a superhero saving the day—instead of being overwhelmed by the waves, the ship confidently powers through, ensuring a safe and smooth passage for its passengers and crew.

Embracing the Bulbous Bow

Some modern ships sport what seems like a fascinating underwater appendage—the bulbous bow. This protrusion at the forward end of the hull may look peculiar, but it serves a vital purpose. The bulbous bow enhances hydrodynamic efficiency by reducing wave-making resistance. The result? Reduced fuel consumption, increased speed, and better stability—everything a ship captain could ask for.

Imagine the bulbous bow as a sleek underwater dolphin guiding the ship through the waves. Its purposeful shape optimizes water flow around the hull, minimizing resistance, and enhancing the ship’s stability. This ingenious design not only improves the ship’s performance but also contributes to more environmentally-friendly voyages with reduced fuel consumption.

The Art of the Chine Hull

In the world of ship design, the chine hull takes the spotlight. Boasting distinct angles between the bottom and the sides of the hull, the chine design provides more lift and enhances stability, particularly at lower speeds and in calm waters. It’s a popular choice for various vessels, including fishing boats and recreational crafts, as it offers the perfect balance of form and function.

Think of the chine hull as the ship’s secret weapon for maintaining stability, especially during leisurely cruises or when dropping anchor for some fishing. As the ship gently glides on calm waters, the chine hull provides extra lift, keeping it steady and preventing any unwanted rocking. It’s like having a built-in stabilizer for those peaceful days at sea.

Slicing Through Waves: The Clipper Bow

If ships could be knights of the sea, the clipper bow would undoubtedly be their trusty sword. This traditional design features a sharp, narrow entry and a long overhang above the waterline. The clipper bow isn’t just for show; it offers better maneuverability, allowing the ship to cut through waves with reduced pitching—a true masterstroke for smoother sailing.

When the ship encounters rough seas, the clipper bow takes charge like a skilled fencer. Its sharp entry pierces through the waves, and the overhang elegantly glides over them, ensuring minimal pitching. This bow design not only enhances stability but also pays homage to the golden age of sailing, combining functionality with a touch of timeless elegance.

Embracing the Waves: Flatter Bow Sections

In the grand ballet of the seas, ships with flatter bow sections have some remarkable dance moves. The flatter bow provides greater lift as the ship encounters waves, resulting in better stability and easier maneuverability. It’s like having an ace up your sleeve—a flatter bow helps reduce slamming and maintains better control during turns and changes in course, ensuring a graceful performance even in rough waters.

Imagine the ship as a graceful dancer, effortlessly gliding and twirling on the waves. Thanks to the flatter bow sections, the ship enjoys more lift, akin to a dancer leaping gracefully into the air. This increased lift not only enhances stability but also reduces the impact of waves, ensuring a smoother ride, especially during those sudden maneuvers.

Navigating the Icy Waters: Icebreaking Capability

For ships daring to explore icy waters, an icebreaking bow is more than a necessity—it’s a lifesaver. These bows are specifically designed to ride up onto the ice, breaking it under the ship’s weight. With a reinforced and more rounded shape, icebreaking bows can withstand the formidable forces encountered when navigating through ice-infested waters. A true hero in the world of ship design.

Picture the ship as an intrepid explorer, boldly venturing into icy realms. The icebreaking bow takes the lead, fearlessly crushing the ice and clearing a path for the ship to follow. It’s like witnessing a legendary icebreaker plowing through adversity, making it possible for ships to traverse even the most treacherous polar waters.

Fins and Appendages: The Maneuvering Maestros

Some bow designs take the concept of maneuverability to a whole new level by incorporating additional fins or appendages. These features act as the ship’s dance partners, improving its maneuverability during tight turns and reducing the turning radius. Picture the ship spinning on its toes with ease, gracefully gliding through confined waters, all thanks to these maneuvering maestros.

The ship’s fins and appendages work together to perform delicate maneuvers, like a skillful dancer. These add-ons activate to provide precise control and agility as the ship gracefully pirouettes through confined spaces. Congested ports and limited rivers become art forms, displaying the ship’s ability to solve even the most challenging navigation issues.

In the symphony of ship design, the bow plays a pivotal role in orchestrating stability and maneuverability. From wave resistance reduction and bow flare to bulbous bows and chine hulls, each design improves ship performance. Ships can gracefully overcome seas without sacrificing context or detail with the right bow. Next time you see a beautiful ship sailing, think about the unsung hero of smooth sailing—the bow engineering. Amidst ocean turbulence, ship bow designs remain true, leading ships safely to their destinations.

Advantages and Disadvantages of Different Bow Designs Utilized in Shipbuilding

In the vast world of shipbuilding, the bow design plays a crucial role in a vessel’s performance, efficiency, and safety on the open seas. Each bow design comes with its unique set of advantages and disadvantages, and shipbuilders carefully consider these factors when constructing various types of ships. Let’s take a closer look at some popular bow designs and what sets them apart.

Bulbous Bow

The bulbous bow is a distinctive protruding bulb-like structure fitted at the bow of a ship, and it offers several key advantages:

• Reduced Resistance and Drag

The bulbous bow’s streamlined shape helps to minimize resistance and drag as the ship moves through the water. This, in turn, contributes to improved fuel efficiency, leading to potential cost savings for ship operators.

• Enhanced Wave-Making Resistance

By strategically displacing water waves, the bulbous bow reduces the creation of waves in front of the ship, resulting in smoother sailing and reduced pitching motions. This enhances the comfort of passengers and crew onboard.

• Increased Bow Buoyancy

The additional buoyancy provided by the bulbous bow helps prevent bow diving in heavy seas, enhancing the ship’s stability and safety in challenging weather conditions.

However, the bulbous bow is not without its drawbacks

• Increased Construction and Maintenance Costs

Incorporating a bulbous bow into a ship’s design can raise construction and maintenance expenses due to the additional structure and complexity involved.

• Limited Effectiveness at Lower Speeds

The benefits of the bulbous bow are more prominent at higher speeds, making it less effective for vessels that mainly operate at lower speeds.

• Possibility of Damage in Ice-Infested Waters

In ice-infested regions, the bulbous bow’s protruding shape may be susceptible to damage, potentially necessitating additional reinforcement or ice-breaking capabilities.

Clipper Bow

The clipper bow features a sharp, streamlined design with a noticeable concave curve, and it offers the following advantages

• Excellent Seakeeping Capabilities

The clipper bow’s shape allows it to slice through rough seas with ease, making it particularly effective in maintaining stability and performance during adverse weather conditions.

• Reduced Slamming and Green Water on Deck

The design’s sharp entry into the water helps reduce slamming (when the bow crashes into waves) and the amount of green water that can wash onto the deck, ensuring a safer and more comfortable journey.

• Improved Maneuverability

The clipper bow enhances a ship’s maneuverability and handling characteristics, enabling it to navigate through congested waters and busy ports more effectively.

However, there are some considerations with the clipper bow design:

• Limited Cargo-Carrying Capacity

Compared to other bow designs, the clipper bow may have relatively limited cargo-carrying capacity, making it more suitable for certain types of vessels and cargo.

• Potentially Higher Resistance at Lower Speeds

The sharper entry of the clipper bow into the water can result in higher resistance at lower speeds, potentially impacting fuel efficiency.

• Susceptibility to Ice Damage

In icy conditions, the clipper bow’s shape may be more vulnerable to damage, necessitating careful navigation or additional ice-class features for ships operating in such areas.

Flared Bow

The flared bow design features a shape that widens or flares out towards the upper part of the bow, offering the following advantages

• Improved Stability and Reduced Rolling

The flared bow’s wider shape contributes to improved stability, reducing the rolling motion of the ship in beam seas and adverse weather.

• Enhanced Safety in Rough Weather

The design’s flare provides additional protection from green water on deck, making it safer for the crew and cargo during rough weather conditions.

• Increased Buoyancy in Head Seas

The flared shape generates more buoyancy at the forward part of the ship, allowing it to perform better in head seas, where waves approach the bow.

However, the flared bow design has its own set of challenges:

• Potentially Higher Resistance at Higher Speeds

The increased surface area of the flared bow can lead to higher resistance, affecting the ship’s speed and fuel efficiency at higher speeds.

• Limited Effectiveness in Ice Conditions

While the flared bow offers advantages in rough seas, it may not be as effective in ice conditions compared to more specialized icebreaker bow designs.

• Reduced Available Cargo Space

The flare’s shape may reduce the available cargo space in the forward area of the vessel, which could impact the ship’s carrying capacity.

Inverted Bow (Wave-Piercing Bow)

The inverted bow, also known as the wave-piercing bow, is characterized by a downward-sloping design that cuts through waves instead of riding over them. Its advantages include:

• Reduced Pitching and Slamming Motions

By piercing through waves, the inverted bow reduces pitching and slamming motions, offering a smoother and more comfortable ride for passengers and crew.

• Improved Fuel Efficiency at High Speeds

The wave-piercing design reduces wave resistance, improving fuel efficiency at high speeds.

• Enhanced Seakeeping Abilities

The inverted bow’s design excels in adverse weather conditions, especially in head seas, ensuring better seakeeping abilities for the vessel.

However, there are some considerations when using an inverted bow:

• Potential Structural Complexity and Construction Costs

Implementing the wave-piercing bow design may require additional structural complexity, leading to increased construction costs.

• Limited Cargo-Carrying Capacity

The design’s configuration may reduce the available cargo space in the forward area of the ship, affecting the vessel’s overall carrying capacity.

• Effectiveness at Lower Speeds and in Following Seas

The benefits of the inverted bow design may be less noticeable at lower speeds or in following seas, where other bow types may perform better.

Raked Bow

The raked bow boasts an inclined, sloping design that offers several advantages:

• Enhanced Stability in Head Seas

The raked bow’s shape contributes to improved stability when facing head seas, making it a preferred choice for vessels that often encounter adverse weather conditions.

• Improved Speed and Fuel Efficiency

The inclined design reduces resistance, allowing the ship to achieve higher speeds and potentially better fuel efficiency.

• Better Visibility from the Bridge

The slope of the raked bow provides better visibility for the crew from the bridge, enhancing situational awareness during navigation.

However, the raked bow design has its own drawbacks:

• Reduced Cargo Space

The inclined shape of the raked bow may reduce the available cargo space in the forward area of the vessel, potentially impacting its carrying capacity.

• Limited Effectiveness in Certain Sea Conditions

While effective in head seas, the raked bow may not perform as well in certain other sea conditions, such as following seas.

• Potential for Increased Slamming

The raked bow’s inclined design may lead to increased slamming in rough seas, impacting the comfort of passengers and crew.

Straight Bow

The straight bow is a simple, straightforward design with a vertical stem, offering the following advantages:

• Maximized Cargo Capacity

The straight bow’s shape allows for maximum utilization of the forward area, optimizing cargo-carrying capacity.

• Easy and Cost-Effective Construction

The simplicity of the straight bow design facilitates easy and cost-effective ship construction.

• Suitability for Icebreaking and Ice-Class Vessels

The straight bow is well-suited for icebreaking and ice-class vessels, as it allows for effective navigation in icy conditions.

However, there are some considerations with the straight bow design:

• Increased Resistance and Wave-Making

The vertical stem of the straight bow can lead to increased resistance and wave-making, potentially affecting the ship’s performance in certain sea conditions.

• Reduced Seakeeping Abilities

Compared to more specialized bow designs, the straight bow may have reduced seakeeping abilities in rough weather.

• Potential for Higher Fuel Consumption at High Speeds

At high speeds, the increased resistance of the straight bow may result in higher fuel consumption.

Each bow design has its own set of pros and cons in the world of shipbuilding, and choosing the best one is dependent on a number of criteria such as the ship’s intended purpose, operating conditions, and cargo needs. The bulbous bow excels in improving fuel efficiency and seakeeping, while the clipper bow boasts excellent seakeeping capabilities and maneuverability. The flared bow enhances stability and safety, while the inverted bow reduces pitching and offers better fuel efficiency. The raked bow prioritizes stability and speed, while the straight bow maximizes cargo space and is ideal for ice-class vessels.

The Stern: Examining the Rear Section of a Ship

As we sail towards the rear of the ship, we encounter the mighty stern. Like the bow, the stern also has its secrets to share. It houses the propeller, which acts as the driving force behind the ship’s movement. We’ll explore the intricacies of propeller design and efficiency, which are essential for optimal performance. Moreover, the stern is often equipped with steering mechanisms, empowering the ship to maneuver its way through challenging waters.

What is the Stern Of A Ship?

The “stern” of a ship refers to the rear or aft part of the vessel. It is the opposite end of the ship’s bow (the front). The stern is an essential part of the ship’s design and structure, serving several important functions:

Steering

The stern often houses the ship’s rudder, which is used to control the direction of the vessel. By adjusting the angle of the rudder, the ship’s course can be altered, allowing it to turn or maintain a steady heading.

Propulsion

In many modern ships, the stern contains the propeller(s), which are responsible for generating forward thrust and propelling the ship through the water. The propulsion system can include one or more propellers depending on the ship’s size and design.

Crew and Passenger Facilities

On many ships, particularly larger ones like cruise ships and naval vessels, the stern may also include crew quarters, passenger cabins, recreational areas, and other facilities. These areas are usually located towards the rear of the ship to minimize motion and provide a smoother ride.

Loading and Unloading

In some vessels, such as cargo ships, the stern may have loading and unloading facilities, such as ramps or cranes, to facilitate the movement of cargo on and off the ship.

When discussing the stern of a ship, several important terms are often used:

In nautical terminology, “aft” refers to the direction towards the stern or rear of the ship. It is the opposite of “forward” or “fore,” which refers to the direction towards the bow or front of the vessel. The term is commonly used by sailors and mariners to describe the location or movement of objects, crew, or activities on the ship.

For example, sailors might use the term “aft” in sentences like:

“The lifeboats are located aft of the main deck.”

“Please stow the cargo in the hold, just aft of the engine room.”

“The captain’s quarters are situated aft of the bridge.”

By using the term “aft,” sailors can quickly communicate the relative position of something in relation to the stern, aiding in navigation, safety, and efficient ship operations.

Types of Sterns

There are several different types of stern designs used in shipbuilding, each with its own advantages and applications. The choice of stern type depends on the specific purpose of the vessel, hydrodynamic considerations, and other design requirements. Here are some common types of sterns:

Transom Stern

The transom stern is a flat, vertical or near-vertical stern. It is one of the simplest and most common stern designs. The transom stern is not difficult to build and provides good deck space, making it suitable for many cargo ships, fishing vessels, and smaller boats. However, its flat shape can cause more resistance in the water, impacting the ship’s speed and fuel efficiency.

Cruiser Stern

The cruiser stern, also known as the canoe stern, is characterized by a rounded shape, similar to the bow. This type of stern is often used in sailboats and some yachts. The rounded shape can improve the yacht’s overall aesthetics and reduce resistance, leading to better performance under sail. However, cruiser sterns may have limited deck space and can be more challenging to build.

Counter Stern

The counter stern features an overhanging section at the aft end of the ship, extending beyond the waterline. This design is common in some classic sailing ships and early naval vessels. The overhanging counter stern can provide several benefits, such as improved buoyancy aft, reduced drag, and enhanced maneuverability. However, it may add complexity to the construction and maintenance of the ship.

Double-Ended Stern

A double-ended stern, also known as a double-ender, is a stern design that is symmetrical, with a similar shape to the bow. This design allows the ship to move in either direction, which can be advantageous in certain situations, such as when navigating in narrow waterways without having to turn the ship around. Double-ended sterns are commonly found in some traditional sailing vessels and ferries.

Transom-Stern with a Flare

This design combines a flat transom stern with a slight outward flare. The flare helps to reduce resistance and wave-making at higher speeds, improving the ship’s performance. This type of stern is often used in modern planing hulls, such as high-speed ferries and powerboats.

Stern Ramp (Ro-Ro Stern)

In Roll-on/Roll-off (Ro-Ro) vessels, the stern is designed with a large ramp that allows vehicles and cargo to be loaded and unloaded directly onto the ship’s deck. The stern ramp facilitates efficient and rapid loading and unloading operations for wheeled cargo.

These are just a few examples of the various stern designs used in shipbuilding. Each type has its own advantages and trade-offs, and ship designers carefully consider the intended use and operational requirements when selecting a particular stern design for a vessel.

Stern – Design and Construction

The design and construction of the stern in a ship are critical aspects that directly influence the vessel’s performance, stability, and safety. Ship designers and naval architects carefully consider various factors to create an efficient and effective stern design. Here are some key considerations in the design and construction of a ship’s stern:

Hydrodynamics

The shape of the stern impacts the vessel’s hydrodynamic performance, including resistance, drag, and maneuverability. People often use Computational Fluid Dynamics (CFD) simulations to optimize the stern’s design and minimize resistance while improving fuel efficiency.

Stability and Trim

Proper weight distribution and buoyancy at the stern are essential for maintaining the ship’s stability and trim. A well-designed stern ensures that the ship’s center of gravity remains within safe limits during various loading conditions.

Propulsion System

The stern needs to accommodate the ship’s propulsion system, which typically includes the main propeller(s), shafts, and possibly other components like thrusters. The design must provide sufficient clearance for the propeller(s) and ensure smooth water flow to maximize propulsion efficiency.

Rudder Arrangement

The rudder is critical for steering the ship, and its arrangement at the stern is crucial for effective maneuverability. Ship designers carefully consider the size, shape, and position of the rudder to optimize turning performance and response.

Structural Integrity

The stern must be structurally robust to withstand the stresses and forces experienced during the vessel’s operations. The construction materials and techniques used in the stern should meet the required strength and durability standards.

Stern Geometry

The shape and angles of the stern can affect wave-making resistance and slamming in rough seas. Properly designed stern geometry can reduce wave drag and ensure a smoother ride.

Stern Ramp (Ro-Ro Vessels)

In ships with a stern ramp, such as Ro-Ro vessels, the ramp design and construction must be capable of handling heavy loads and repeated use during cargo operations.

Crew and Passenger Facilities

For ships with accommodations at the stern, the design should consider the comfort and safety of crew members and passengers. Proper ventilation, escape routes, and access to essential amenities are essential considerations.

Compliance with Regulations

The design and construction of the stern must comply with various international and national maritime regulations and standards to ensure the ship’s seaworthiness and safety.

Manufacturability and Cost

The feasibility of constructing the stern design is another crucial consideration. The design should be practical and cost-effective to build without compromising safety or performance.

Stern: Roles and Significance

The stern of a ship serves several important functions and plays an necessary role in the overall operation and performance of the vessel. Here are some of the key functions and the importance of the stern:

Steering

As mentioned earlier, the stern houses the ship’s rudder, which is essential for controlling the direction of the vessel. The ship can adjust its heading by turning the rudder, enabling it to navigate through various water conditions, avoid obstacles, and follow a desired course.

Propulsion

One of the primary functions of the stern is to house the ship’s propulsion system, typically the propeller(s). The propellers generate the necessary thrust to move the ship forward through the water. The design and efficiency of the stern can have a significant impact on the ship’s speed, fuel consumption, and overall performance.

Stability

The shape and design of the stern can influence the ship’s stability in various sea conditions. A well-designed stern can help reduce pitch and roll motions, providing a more comfortable ride for passengers and crew while also enhancing the ship’s overall stability.

Load Distribution

The stern’s configuration can affect the distribution of weight on the ship. Proper weight distribution is crucial for maintaining stability and trim (the ship’s balance along its longitudinal axis). This is particularly important during loading and unloading operations and while carrying various types of cargo.

Crew and Passenger Facilities

On many vessels, the stern includes facilities for crew members and passengers. During extended journeys, designers typically create these areas to ensure the well-being of those on board by providing comfortable accommodations.

Maneuverability

The design of the stern, in combination with other ship features like the rudder and bow shape, affects the ship’s maneuverability. Efficient maneuvering is vital for docking, navigating through narrow channels, and performing intricate operations at sea.

Resistance and Drag

The stern’s hydrodynamic shape can impact the ship’s resistance and drag in the water. Reducing resistance is crucial for enhancing fuel efficiency and overall performance.

Safety

A well-designed stern with appropriate safety features can help protect the ship and its crew from potential hazards, especially during adverse weather conditions or emergencies.

The Hull: Uncovering the Main Body of the Ship

Now, let’s dive into the heart of the vessel – the ship hull. The hull is the backbone of any ship, providing structural integrity and support to the entire vessel. It’s fascinating to learn about the different materials used in hull construction and the importance of maintaining hull integrity to ensure a safe and reliable voyage.

What is the hull of A Ship?

The hull of a ship refers to its main body or outer shell, which provides the structural framework and shape of the vessel. It’s the part of the ship that comes into direct contact with the water. The hull encompasses both the bottom of the ship, which is called the “bottom shell,” and the sides, which are referred to as the “side shells.” The hull plays a crucial role in the ship’s overall performance, stability, buoyancy, and seaworthiness.

Shipbuilders design and construct the hull to fulfill several important functions.

Buoyancy: The hull’s shape and volume determine the ship’s buoyancy—the ability to float on water. The hull displaces water, creating an upward force that counteracts the weight of the ship and prevents it from sinking.

Stability: The shape and weight distribution of the hull influence the ship’s stability. A stable hull design helps the ship maintain an upright position and resist rolling and tilting in response to waves and external forces.

Resistance and Drag: The hull’s shape and surface area affect how the ship moves through the water. A streamlined hull design can reduce drag and resistance, enhancing the ship’s efficiency and speed.

Structural Support: The hull provides the primary structural framework for the ship. It supports the weight of the ship’s components, cargo, machinery, accommodations, and any other equipment on board.

Protection: The hull acts as a protective barrier against the elements, including water, waves, and potential environmental hazards. It must be constructed from sturdy materials that can hold up against the rigours of the ocean and the corrosive effects of seawater.

Hydrodynamics: The shape of the hull affects the ship’s hydrodynamic performance, determining how it interacts with the water. Different hull designs are optimized for different types of ships and their intended functions.

Seaworthiness: The hull’s design plays a critical role in ensuring the ship’s ability to navigate various sea conditions safely and efficiently.

Depending on the type of ship, its purpose, and its operational requirements, the hull design can vary significantly. Ship designers design the hulls of various ships, such as cargo ships, container ships, cruise ships, navy vessels, and offshore platforms, to meet the unique demands of their respective industries. Depending on requirements like these, they can make the hull from anything from standard steel to cutting-edge composites.

Types of hull

There are several types of ship hulls, each designed to meet specific requirements and functions based on the type of ship, its intended use, and the environmental conditions it will encounter. Here are some common types of ship hulls:

Displacement Hull

This is the most common type of hull and is often used in cargo ships, naval vessels, and passenger ships. A ship with a displacement hull is able to propel itself through the sea by dislodging an amount of water proportional to its own mass. They are characterized by their full, rounded shapes and offer good stability. They are not as fast as other hull types, but they are efficient for carrying heavy loads and providing stability in rough seas.

Planing Hull

Designers create planing hulls to rise up and ride on the surface of the water at high speeds, rather than moving through the water like displacement hulls. They have a flatter and more streamlined shape to reduce water resistance and enable the vessel to “plane” on the water’s surface. Planing hulls are commonly found in speedboats, small recreational craft, and some types of naval vessels.

Semi-Displacement Hull

This type of hull combines features of both displacement and planing hulls. Semi-displacement hulls can operate efficiently at both lower speeds (displacement mode) and higher speeds (planing mode). They are often used in yachts and smaller vessels that need a balance between speed and stability.

Catamaran Hull

Catamaran hulls consist of two parallel hulls connected by a deck. They offer stability and a wide deck space, making them suitable for passenger ferries, pleasure boats, and some military vessels. Catamarans can achieve higher speeds due to reduced water resistance.

Trimaran Hull

Similar to catamarans, trimaran hulls have three parallel hulls. The central hull is typically larger than the side hulls, offering a balance between stability and speed. Various applications, including commercial vessels, military ships, and sailboats, use trimarans.

Monohull

Monohulls have a single hull, which is the most common design for boats and ships. They come in various forms, such as displacement hulls, planing hulls, and semi-displacement hulls, each tailored to different purposes.

Hull with Bulbous Bow

Some ships feature a bulbous bow, which is an extended, bulb-like structure located at the front of the hull. The bulbous bow can help reduce wave resistance and improve fuel efficiency by modifying the way water flows around the ship’s bow.

Icebreaker Hull

Icebreaker ships have reinforced hulls designed to break through ice-covered waters. Their strengthened structure and shape often characterize these hulls, enabling them to navigate in harsh Arctic and Antarctic regions.

Submarine Hull

Submarines have specialized hulls designed for underwater operation. Designers create these hulls to withstand pressure at varying depths and to provide buoyancy control.

These are just a few examples of ship hull types, and there are many variations and combinations based on specific needs and technological advancements. The choice of hull type depends on factors such as the ship’s intended use, speed requirements, stability needs, and the environmental conditions it will encounter.

Design and Construction

The design and construction of a ship’s hull involve a combination of engineering, naval architecture, materials science, and hydrodynamics. Here’s an overview of the process:

Design Phase: Conceptual Design: Engineers and naval architects determine the ship’s purpose, size, capacity, and operational requirements. They create initial concepts and sketches of the ship’s hull shape, taking into account factors like stability, speed, cargo capacity, and aesthetics.

Hydrodynamic Analysis: Researchers use computational fluid dynamics (CFD) simulations to analyze how different hull shapes interact with water. This helps optimize the hull design for efficiency and performance.

Structural Analysis: Engineers analyze the structural integrity of the hull, considering the forces the ship will encounter during operation. Finite element analysis (FEA) is commonly used to simulate stress and deformation.

Stability Analysis: Ship designers perform stability calculations to ensure the ship will remain stable and upright under various conditions, including loading, waves, and weight distribution.

Materials Selection: Engineers choose appropriate materials for the hull based on factors such as strength, weight, corrosion resistance, and cost. Common materials include steel, aluminum, fiberglass-reinforced composites, and advanced materials like carbon fiber.

Model Testing: Researchers may test physical scale models of the ship’s hull in water tanks to validate design assumptions and gather data for further refinement.

Detailed Design: Once the team finalizes the conceptual design, they create detailed engineering drawings and specifications. These include plans for the hull’s structure, compartments, systems, and equipment placement.

Construction Phase:

Hull Fabrication: Shipbuilders construct the hull using welding (for steel), bonding (for composites), or other relevant methods, depending on the chosen materials. They build the hull in sections and then assemble it.

Structural Components: Shipbuilders install various structural components, such as bulkheads (internal walls), frames (vertical supports), and decks to provide strength and compartmentalization.

Fitting Out: Propulsion systems, electrical systems, plumbing, HVAC (heating, ventilation, air conditioning), and living quarters for crew and passengers are all installed during this stage.

Coating and Paint: To prevent corrosion and fouling from marine life, workers coat the hull with protective paints and coatings.

Testing and Trials: The ship undergoes sea trials to test its performance, stability, maneuverability, and systems. We make any necessary adjustments based on trial results.

Certification: The ship must meet international maritime standards and regulations set by organizations like the International Maritime Organization (IMO) and classification societies. Once certified, the ship can operate commercially.

Delivery: After successful testing, the ship’s owner or operator receives delivery of the vessel for regular service.

The design and construction process can vary depending on factors such as the type of ship, its size, and its intended use. Ship designers often employ advanced technologies, computer simulations, and cutting-edge materials to optimize the ship’s performance, efficiency, and safety.

The Deck: Investigating the Surface Area of a Ship

Ah, the deck! It’s the open playground of a ship, where crew members work tirelessly, cargo is loaded and unloaded, and passengers enjoy the mesmerizing ocean views. We’ll explore the various types of decks, the materials used, and the deck’s multiple functionalities, making it an essential space on any vessel.

Deck Types

The main deck is the primary deck, extending along the entire length of the ship and providing a level surface for various operations. The weather deck is positioned above the main deck, offering additional space for cargo stowage or passenger accommodations. Promenade decks are found on passenger ships and are designed for passengers to stroll and enjoy scenic views.

Deck Materials

The choice of deck materials is determined by factors such as the ship’s function, load-carrying capacity, and desired aesthetics. Steel is commonly used for its strength, while wood may be preferred for its non-slip properties and traditional appeal. Composite materials are becoming more popular, offering a lightweight alternative with excellent corrosion resistance.

Deck Functionalities

The deck serves multiple functions depending on the ship’s type and purpose. On cargo ships, it provides a vast platform for loading and unloading goods, accommodating heavy machinery and cargo handling equipment like cranes and winches. Passenger ships offer recreational areas, restaurants, and lounges on deck, providing a pleasant and comfortable experience for passengers during their voyage.

Superstructure: Delving into Additional Structures Above the Main Deck

Rising above the deck, we find the superstructure – a web of additional structures that add both functionality and aesthetics to the ship. From housing crew cabins to accommodating navigation equipment, the superstructure is a bustling hub of activity on any vessel.

Crew Accommodations

Within the superstructure, crew cabins provide a living space for the ship’s crew during their time at sea. Crew members work long shifts, and having comfortable living quarters is essential for their well-being and overall job satisfaction.

Navigation Bridge

The navigation bridge is the nerve center of the ship, where skilled officers and navigators control the vessel’s movements, monitor navigation systems, and make critical decisions to ensure safe and efficient passage. Equipped with advanced technology and communication systems, the bridge plays a crucial role in the ship’s navigation and safety.

Auxiliary Equipment

The superstructure houses a range of auxiliary equipment necessary for efficient ship operations. Radar systems help detect and track other vessels and potential obstacles, aiding in navigation and collision avoidance. GPS systems provide accurate positioning information, allowing the ship’s officers to chart their course with precision. Additionally, communication systems keep the crew connected with other vessels, ports, and onshore authorities.

Mast and Bridge: Understanding Key Components for Navigation and Control

Ever wonder how a ship finds its way across the vast expanse of the ocean? It’s all thanks to the mast and bridge. These vital components house essential navigation equipment, allowing skilled mariners to chart their course and steer towards their destination safely.

Mast Functions

The mast serves as a multi-functional structure on a ship. It supports the ship’s navigation lights, which are essential for signaling the ship’s position, status, and direction at night or during periods of low visibility. Additionally, antennas mounted on the mast facilitate communication, including radio and satellite transmissions, enabling the ship to stay connected with other vessels and onshore authorities.

Navigation Bridge

Often situated atop the superstructure, the navigation bridge is the command center for the ship’s navigation and control operations. Skilled officers and navigators closely monitor the ship’s position, course, and speed, using various navigational instruments to ensure the vessel follows its intended route safely and efficiently. Some examples of state-of-the-art equipment found on the bridge include an electronic chart display and information system (ECDIS) and an automated radar plotting assistant (ARPA).

Navigational Instruments

Alongside the mast and bridge, several vital navigational instruments aid the ship’s officers in making informed decisions during navigation. Gyrocompasses provide precise heading information, which is crucial for accurate navigation. Radar systems detect other vessels, coastal features, and potential navigational hazards, allowing for timely adjustments to the ship’s course. Automatic Identification System (AIS) equipment exchanges ship information with nearby vessels, improving situational awareness and enhancing safety.

Funnel: Examining the Role of Funnel in Ventilation and Engine Exhaust

As the ship’s heart, the engine, pumps life into its metal veins, it exhales through the funnel, releasing the power of its mighty engines. Beyond its functional significance, the funnel is an iconic symbol of maritime journeys, creating picturesque scenes against the horizon.

Funnel Purpose

The funnel’s primary function is to facilitate the ventilation of the ship’s engine spaces. The engines generate enormous heat, and the funnel allows hot air and exhaust gases to escape, preventing the engine room from becoming uncomfortably hot or hazardous to the crew’s health. Additionally, the funnel helps dissipate exhaust emissions away from the ship’s superstructure, reducing air pollution and ensuring a safe working environment for crew members.

Funnel Design

The design of the funnel takes into account various factors to optimize its efficiency. The funnel’s height and shape influence the dispersal of smoke and hot air. Tall funnels are effective in carrying exhaust gases above the superstructure, ensuring a clear path for fresh air to enter the engine room. The cross-sectional area of the funnel also plays a role in regulating airflow, affecting the engine room’s temperature and maintaining optimal engine performance.

Funnel Aesthetics

Beyond its functional significance, the funnel has become an iconic symbol of maritime tradition. Many ships bear their company logo or insignia on the funnel, adding to the vessel’s visual appeal and making it easily recognizable to enthusiasts and onlookers. The funnel’s design often reflects the ship’s identity and purpose, further contributing to its unique personality.

Propeller: The Driving Force Behind a Ship’s Movement

Imagine the propeller as the ship’s paddle, propelling it forward with every turn. We’ll explore the science behind marine propulsion, the design considerations of propellers, and how they work in harmony with other ship parts to achieve efficient and agile movement.

Marine Propulsion

The propeller serves as the driving force that propels the ship forward through the water. When the ship’s engine generates power, it transmits that power to the propeller shaft, causing the propeller to rotate. As the blades rotate, they create a flow of water, generating a thrust force in the opposite direction. This thrust force pushes the ship forward, propelling it through the water.

Propeller Design

The design of the propeller is a critical aspect of shipbuilding. Propellers come in various configurations, each designed to optimize performance under specific conditions. The number of blades, their shape, and the angle of their pitch all influence the propeller’s efficiency and thrust generation.

Propeller Efficiency

Propeller efficiency is a crucial consideration for ship operators, as it directly impacts fuel consumption and overall performance. A well-designed propeller can significantly reduce fuel consumption, thereby reducing operational costs and minimizing the environmental impact. Propeller efficiency is also important for the ship’s maneuverability, allowing it to make precise turns and adjustments during navigation.

Rudder: Steering Towards Safe Navigation and Maneuverability

Steering a massive vessel through stormy waters requires precision and finesse, and the rudder takes on this crucial task. We’ll delve into the rudder’s mechanics, control systems, and its role in enabling the ship to navigate through tight turns and changing currents.

Rudder Mechanism

The rudder is an essential component of the ship’s steering system, allowing skilled mariners to control the vessel’s direction. Typically, sailors attach the rudder to the stern, just behind the propeller. They connect it to the bridge using a series of mechanical linkages or hydraulic systems, enabling the ship’s officers to control its movement.

Rudder Control Systems

Modern ships use advanced hydraulic or electric systems to control the rudder’s movement. The rudder’s angle can be adjusted precisely, allowing the ship to make smooth and precise turns. The bridge officers monitor the ship’s heading and make adjustments to the rudder as needed to follow the intended course.

Turning Radius

The distance a ship needs to turn is known as its turning radius. It depends on various factors, including the ship’s size, shape, speed, and the efficiency of the rudder. Ships with a smaller turning radius are more maneuverable, allowing them to navigate through narrow channels and busy waterways with ease.

Keel: The Backbone of a Ship’s Structural Integrity and Stability

If the hull is the ship’s backbone, then the keel is its very soul. The keel provides stability and balance, ensuring that the ship stays upright even in rough seas. We’ll learn about keel design, its importance in weight distribution, and how it contributes to overall structural integrity.

Keel Design

The keel is the ship’s foundation, extending along the entire length of the vessel and providing essential structural support. Its design is carefully considered to ensure the ship remains stable and capable of withstanding the forces of the sea. The keel must be strong enough to support the ship’s weight and cargo while ensuring the vessel’s stability and seaworthiness.

Weight Distribution

Proper weight distribution is critical for a ship’s stability. The keel plays a significant role in distributing the ship’s weight along its length and breadth. When the cargo is loaded onto the ship, the distribution of weight must be carefully balanced to maintain the vessel’s stability and prevent listing (leaning) to one side.

Structural Integrity

The keel’s connection to the hull is reinforced to ensure its structural integrity. The keel’s strength depends on regular maintenance and inspections that look for any signs of damage or corrosion. A strong and well-maintained keel is fundamental to the ship’s overall stability and safe navigation.

Ballast Tanks: Maintaining Balance and Stability at Sea

Balancing a ship is no easy feat, but that’s where ballast tanks come into play. These cleverly designed tanks ensure the ship maintains stability while being loaded with cargo or during varying sea conditions by helping adjust its center of gravity.

Balancing Stability

Balancing stability is a crucial consideration in ship operations. As the ship loads and unloads cargo, its weight distribution changes, affecting its stability. Ships use ballast tanks to counterbalance these changes and maintain their stability and levelness. By filling the ballast tanks with water, ships can adjust their center of gravity to compensate for the changes in weight distribution.

Stability Control

Proper ballast management is vital to the ship’s overall stability and safety. Ship officers and crew continuously monitor the ballast condition and make adjustments as needed to ensure the ship remains stable throughout the voyage. In adverse weather conditions or during cargo operations, careful ballasting is essential to prevent excessive rolling or listing, ensuring the safety and comfort of the crew and cargo.

Cargo Holds: Safely Storing and Transporting Goods Across the Seas

Ships are not just floating marvels but also gigantic carriers of goods across the oceans. Cargo holds are like the storage rooms of a ship, where goods are securely stowed and transported to far-off lands.

Cargo Holds on Ships

Designated storage areas within a ship where goods and cargo are safely stowed during transport. They come in various sizes and shapes, depending on the ship’s design and cargo capacity.

Cargo Handling Equipment

Various cargo handling equipment equip ships for efficient loading and unloading of cargo. Cranes and winches commonly lift and move heavy loads, ensuring smooth cargo operations.

Cargo Securing Mechanisms

The safety of both the cargo and the ship is of utmost importance during transportation. Ships use cargo securing mechanisms, such as lashings, chains, and securing points within the cargo holds, to prevent cargo from shifting or getting damaged during rough seas or heavy weather conditions.

Lifeboats: Ensuring Safety and Survival During Emergency Situations at Sea

Safety is paramount in maritime operations, and lifeboats are the unsung heroes that stand ready to save lives in times of distress. We’ll explore the importance of lifeboats, the equipment they carry, and the procedures in place to ensure a swift and efficient rescue.

Ship Lifeboats

Lifeboats serve as essential life-saving equipment on ships. Designers ensure there is sufficient capacity for everyone on board to evacuate in an emergency by accommodating a specific number of passengers and crew members.

Life-Saving Equipment on Ships

Along with lifeboats, ships carry additional life-saving equipment, such as life jackets, life rafts, and lifebuoys, to enhance survival chances during emergencies. Crew members undergo regular safety drills to familiarize themselves with the life-saving equipment and procedures, ensuring a swift and coordinated response in case of an emergency.

Anchor: Securing a Vessel in Position When Not Underway

Anchors aweigh! When a ship needs to take a break and drop its anchor, this essential component ensures it stays firmly in position. We’ll delve into the different types of anchors, techniques for deployment, and the impressive holding power that keeps a ship secure.

Vessel Anchor Types

Different types of anchors are used based on the ship’s size and the seabed conditions where it is anchored. Common types include stockless anchors, stock anchors, and mushroom anchors.

Anchor Deployment Techniques

Lowering and raising the anchor requires precise coordination between the ship’s crew and the bridge officers. The crew deploys the anchor by paying out the anchor chain, allowing it to settle on the seabed. To raise the anchor, they pull back the chain on board using winches.

Anchor Holding Power

The anchor’s holding power is determined by its design and weight, along with how effectively it grips the seabed. The anchor needs to be able to withstand the forces of wind, waves, and currents to keep the ship securely in place when not underway.

Gangway: Providing Access to and from the Ship

The gangway, a humble yet vital link between ship and shore, allows crew members and passengers to embark and disembark safely. We’ll explore the various designs of gangways and the safety measures in place to prevent mishaps.

Ship Gangway

The gangway is a movable bridge that connects the ship to the dock, providing a safe passage for people to move between the ship and the shore. It serves as the primary access point for embarking and disembarking passengers, crew members, and cargo.

Gangway Design

Designers create gangways to be flexible and adaptable to different dock heights and water levels, accommodating varying tidal conditions. The gangway’s structure must be sturdy to ensure the safety of those using it, even in adverse weather conditions.

Exploring the World of Ship Parts and Appreciating Their Role in Maritime Operations

As we come to the end of our voyage through the fascinating world of ship parts, it’s evident that each component plays a pivotal role in the functionality and safety of a vessel. Just like the pieces of a puzzle, every ship part fits together to create a well-orchestrated symphony, ensuring smooth navigation across the unpredictable seas. Understanding these ship parts empowers us to appreciate the brilliance of maritime engineering and the dedication of the skilled individuals who operate these magnificent vessels. So, the next time you gaze at a ship sailing on the horizon, take a moment to marvel at the complexity hidden beneath its elegant exterior, knowing that every ship part has a story to tell.
