Gantry cranes have long been the backbone of the construction industry, providing the necessary lifting and positioning power for heavy objects. These mighty machines come in various types, each with its own unique features and capabilities. In this article, we will explore the six largest gantry cranes in the world, their remarkable reach capacity, and the impressive engineering behind them.
Taisun Gantry Crane: Setting New Standards in Lifting Capacity
The Taisun Gantry Crane takes the top spot as one of the world’s strongest cranes, boasting an astonishing lifting load of 20,000 metric tons. Standing tall at a whopping 133 meters, this giant crane has become an invaluable asset in numerous projects. Its remarkable height allows for lifting objects as high as 80 meters in the air, making it a versatile solution for various construction needs.
Located in Yantai, Shandong Province, China, the Taisun Gantry Crane has revolutionized the offshore industry. It is primarily used for lifting heavy offshore vessels such as drilling semi-submersibles and FPSOs (Floating Production Storage and Offloading).
Not only does the Taisun Gantry Crane excel in lifting power, but it also plays a crucial role in improving project efficiency and safety. By shortening project schedules and reducing manpower work time by up to two million man-hours, this crane has become a game-changer in the industry. Its contribution to enhancing safety and quality has also been recognized through the Woelfel Best Mechanical Engineering Achievement Award received during the Offshore Technology Conference (OTC) 2008.
Kockums “Tears of Malmö” Crane: A Dockside Giant
The Kockums “Tears of Malmö” Crane is a true spectacle, towering at an impressive height of 138 meters. This colossal crane is designed specifically for dockside operations, making it an essential tool for loading and unloading shipping containers. With a lifting capacity of up to 1,500 tonnes, this crane ensures efficient and seamless operations in busy port environments.
The Kockums Crane features a rail length of 2,329 feet, allowing it to cover significant distances and handle heavy loads with ease. Its robust design and exceptional lifting capabilities make it an indispensable asset in the shipping industry. Whether it’s transferring cargo from ships to storage or vice versa, the Kockums Crane delivers reliable and efficient performance.
SSCV Thialf: The World’s Largest Crane Vessel
The SSCV Thialf deserves its title as the world’s largest crane vessel. With its massive size and impressive lifting capacity, this semi-submersible crane vessel is a force to be reckoned with. The vessel houses two cranes, each with a length of 661 feet, making it a sight to behold.
The total lifting capacity of the two cranes is an astounding 14,200 metric tons, allowing them to effortlessly handle enormous cargoes. The SSCV Thialf is primarily used for installing large oil production platform decks and supporting structures, showcasing its versatility and importance in the offshore industry.
The vessel’s design incorporates advanced features to ensure smooth and efficient operations. Its ability to submerge partially allows for stability during lifting operations, while its impressive lifting capacity enables the installation of heavy offshore structures. With the SSCV Thialf, complex offshore projects become more manageable, thanks to its unparalleled lifting capabilities.
Liebherr Mobile 11200-9.1: Pushing the Limits of Telescopic Boom Cranes
The Liebherr Mobile 11200-9.1 holds the title of the longest telescopic boom crane in the world. With a maximum extension of 100 meters, this crane boasts an impressive reach capacity. Its design incorporates a double cab truck and a lifting capacity of up to 1,200 metric tonnes, making it ideal for heavy lifting tasks.
The Liebherr Mobile 11200-9.1 is a versatile machine suitable for a wide range of applications. Whether it’s assembling wind turbines in the wind power generation field or working on infrastructure projects, this crane delivers exceptional performance. Its innovative Y-telescopic boom suspension allows for versatile operational use while maintaining high-performance standards.

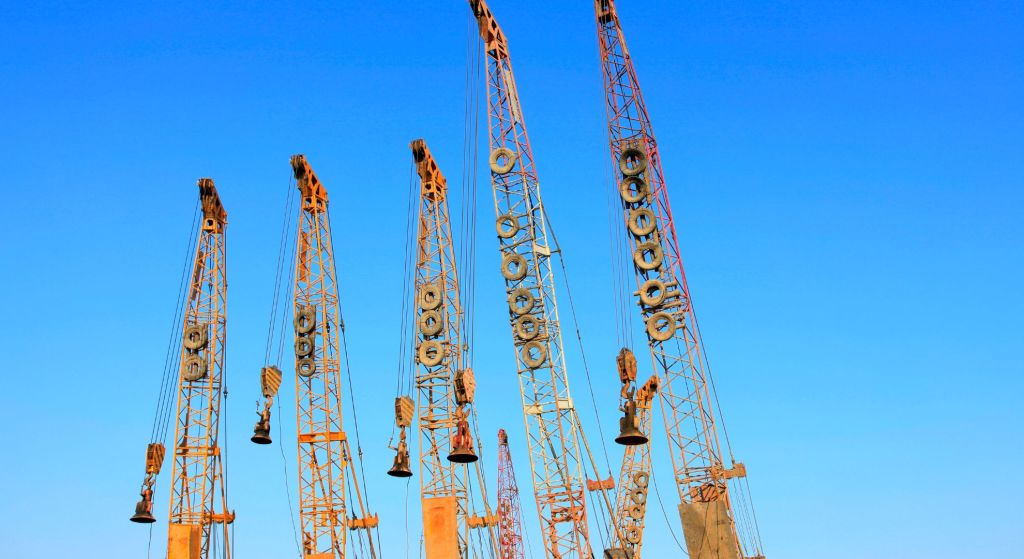

Liebherr LR 13000: Powerhouse in Crawler Crane Technology
The Liebherr LR 13000 takes the crown as the most powerful crawler crane in the world. This engineering marvel is specifically designed for use in nuclear power station construction, where precision and strength are paramount. With a lifting capacity of 3,000 metric tonnes and a main boom height of 473 feet, this crane sets new standards in crawler crane technology.
The Liebherr LR 13000 weighs an impressive 748 tonnes, showcasing its robust and sturdy construction. Its exceptional lifting capacity and reach make it a go-to choice for large-scale construction projects. Whether it’s lifting heavy components or executing complex tasks, this crane delivers the power and precision required for success.
Mammoet PTC 200 DS: Redefining Heavy Lift Capabilities
The Mammoet PTC 200 DS is a unique and powerful ring crane that catches attention with its bold red color and distinctive ring shape. This crane is specifically designed for lifting and installing oversized and heavy objects in confined areas. With a lifting capacity of 5,000 tons, it offers efficient and flexible lifting solutions for challenging projects.
One of the standout features of the Mammoet PTC 200 DS is its ability to operate in hurricane survival mode. In this mode, the crane’s boom can descend to the ground, ensuring stability and safety during extreme weather conditions. This innovative safety feature sets the Mammoet PTC 200 DS apart and makes it a reliable choice for demanding environments.
The world’s six largest gantry cranes represent the pinnacle of engineering and innovation. From the Taisun Gantry Crane’s unmatched lifting capacity to the Mammoet PTC 200 DS’s flexibility in challenging environments, these cranes have revolutionized the construction industry.
Whether it’s the remarkable height and reach of the Liebherr Mobile 11200-9.1 or the sheer power of the Liebherr LR 13000, each crane on this list showcases the incredible capabilities of gantry crane technology. These machines have become indispensable assets in various industries, enabling the safe and efficient lifting of heavy objects and the successful completion of complex projects.
As the construction industry continues to evolve, we can expect even more impressive advancements in gantry crane technology. These machines will continue to push the boundaries of what is possible, providing the necessary lifting power to tackle the most challenging projects.
Related FAQs
What makes the Taisun Gantry Crane stand out in the world of lifting equipment?
The Taisun Gantry Crane holds the title of one of the world’s strongest cranes, boasting an impressive lifting load of 20,000 metric tons. Its remarkable height of 133 meters and lifting capacity make it an invaluable asset in various construction projects, particularly in the offshore industry.
How does the Mammoet PTC 200 DS differ from traditional gantry cranes?
The Mammoet PTC 200 DS is a unique ring crane designed specifically for lifting and installing oversized and heavy objects in confined areas. It provides versatile and effective lifting solutions for difficult tasks with a 5,000-ton lifting capacity and storm survival mode capability.
What role does the SSCV Thialf play in offshore construction projects?
The SSCV Thialf is the world’s largest crane vessel, primarily used for installing large oil production platform decks and supporting structures. With a lifting capacity of 14,200 metric tons and advanced features for stability during lifting operations, it is an essential asset in the offshore industry.
What sets the Liebherr LR 13000 apart from other crawler cranes?
For the construction of nuclear power stations, Liebherr created the world’s most powerful crawler crane, the LR 13000. With a lifting capacity of 3,000 metric tons and a main boom height of 473 feet, it sets new standards in crawler crane technology for precision and strength.
How does the Kockums "Tears of Malmö" Crane contribute to efficient port operations?
The Kockums Crane, towering at an impressive height of 138 meters, is designed specifically for dockside operations, making it an essential tool for loading and unloading shipping containers. With a lifting capacity of up to 1,500 tonnes and exceptional lifting capabilities, it ensures efficient and seamless operations in busy port environments.
