When it comes to the world of maritime engineering, even the smallest details can have a significant impact on a ship’s performance. One such innovation that has silently revolutionized the way ships navigate the seas is the “bulbous bow.” This unassuming protrusion beneath the waterline may not catch your eye at first glance, but its presence can make a world of difference in a vessel’s efficiency, stability, and overall performance.
Table of Contents

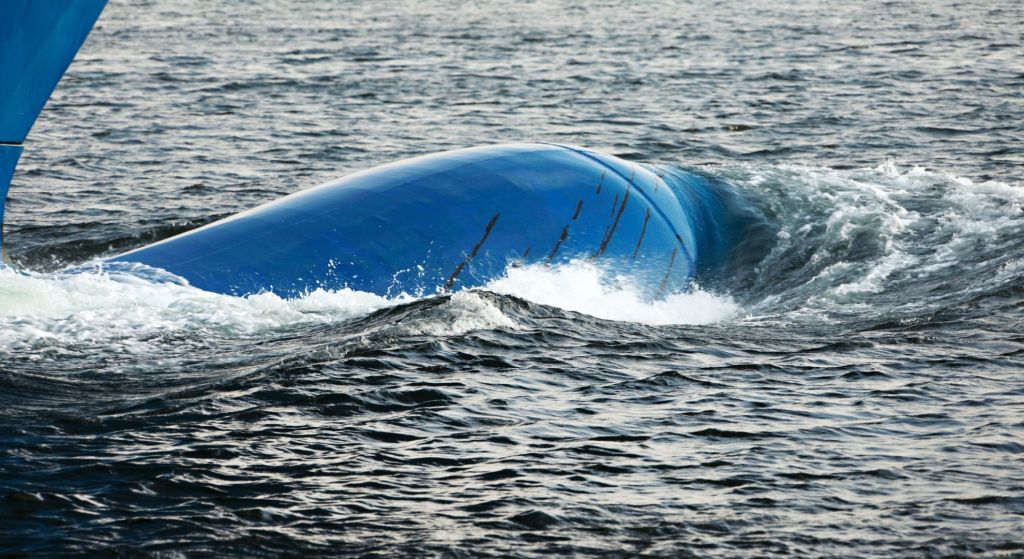

What is a Bulbous Bow?
The bulbous bow is a specialized structure fitted to the front, or bow, of a ship, just below the waterline. It takes on various shapes and sizes, but its primary purpose remains constant: to alter the way water flows around the hull of the ship. By doing so, it reduces hydrodynamic resistance and provides a range of benefits, which we will delve into in this article.
Historical Evolution
The concept of the bulbous bow is not a recent development. It has been a part of naval architecture for centuries, albeit in rudimentary forms. Early seafarers would attach various objects to their vessels’ bows to achieve similar effects. However, it was not until the 20th century that the bulbous bow underwent a true transformation, becoming an integral part of modern ship design.
The Science Behind It
Hydrodynamics at Play
To understand the significance of the bulbous bow, we must first explore the principles of hydrodynamics. When a ship moves through water, it creates a bow wave, which represents a form of resistance. The bulbous bow is designed to interfere with the formation of this wave, redirecting water flow in a way that minimizes resistance.
Reducing Resistance
Reducing hydrodynamic resistance may sound like a subtle change, but it translates into substantial benefits for shipowners. By doing so, the bulbous bow allows ships to move more efficiently through the water, requiring less power and fuel to maintain their speed.
Improved Fuel Efficiency
In an era where environmental concerns are paramount, the bulbous bow’s contribution to fuel efficiency cannot be overstated. It enables ships to consume less fuel, which not only reduces operating costs but also lowers greenhouse gas emissions—a win-win for both ship operators and the environment.
Types of Bulbous Bows
Standard Bulbous Bow
The standard bulbous bow is the most common type, characterized by its streamlined, teardrop-shaped design. This classic configuration is favored for its versatility and proven effectiveness in reducing resistance.
Inverted Bulbous Bow
Inverted bulbous bows, as the name suggests, have their shapes inverted compared to the standard design. They are employed on certain vessel types where unique hydrodynamic conditions necessitate this unconventional approach.
Integrated Bulbous Bow
Integrated bulbous bows are seamlessly incorporated into the hull’s design, offering a more cohesive and aesthetically pleasing solution. They are often found on modern cruise ships and luxury vessels.
The Optimal Shape
Determining the optimal shape for a bulbous bow is a complex task, involving extensive hydrodynamic simulations and testing. Engineers strive to find the ideal balance between reducing resistance and maintaining vessel stability.

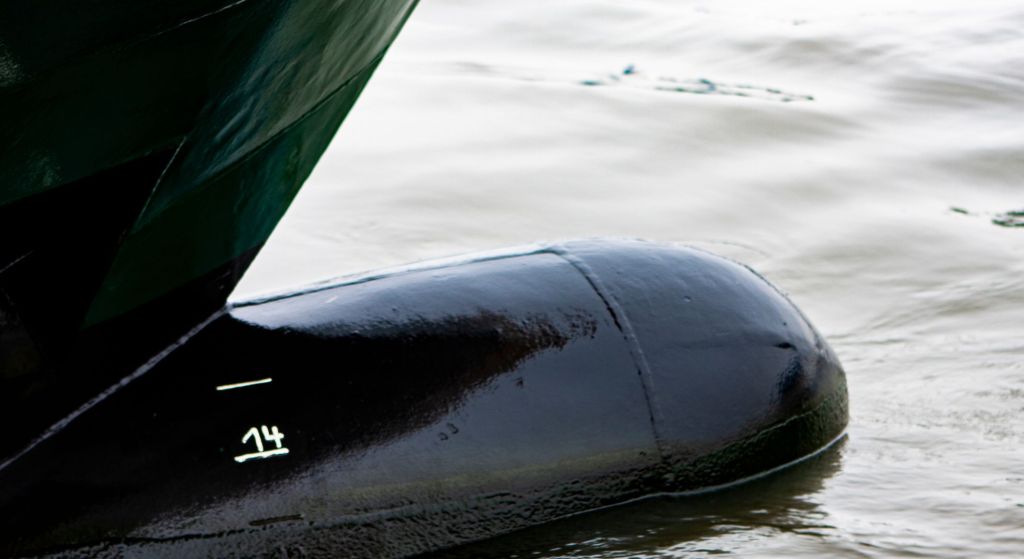

Benefits and Advantages
Enhancing Seakeeping Abilities
Apart from reducing resistance, the bulbous bow also enhances a ship’s seakeeping abilities. It helps to dampen pitching and rolling motions, providing a smoother and more comfortable journey for passengers and crew.
Fuel Savings and Environmental Impact
The financial and environmental benefits of reduced fuel consumption cannot be understated. Shipowners are using wide bows more and more to cut down on their carbon footprint and follow stricter environmental rules.
Cargo Capacity and Stability
In addition to the fuel savings, bulbous bows can increase cargo capacity by optimizing hull design. This is particularly important for container ships, where every inch of cargo space counts.
Safety and Comfort
A smoother, more stable ride also contributes to passenger and crew safety and comfort. Reduced rolling and pitching minimize the risk of seasickness and improve overall onboard experience.
Design Considerations
Shape and Size Matters
The design of a bulbous bow is a meticulous process, involving extensive computational fluid dynamics (CFD) analysis. Engineers fine-tune the shape and size to suit the specific requirements of the vessel.
Material Selection
Choosing the right materials for a bulbous bow is crucial, as it must withstand the harsh conditions of the sea. Corrosion-resistant materials are often used, such as stainless steel or coats made just for that purpose.
Placement and Integration
The correct placement and integration of the bulbous bow into the hull design are critical. Small variations can significantly affect its effectiveness.
Retrofitting Challenges
For existing vessels, retrofitting a bulbous bow can be a complex undertaking. It requires careful planning and often involves dry-docking the ship for installation.
Case Studies
Notable Ship Implementations
Numerous ships around the world have benefited from the incorporation of bulbous bows. From container ships to cruise liners, the list of vessels equipped with this innovation continues to grow.
Measuring the Impact
Quantifying the impact of bulbous bows on ships’ performance involves a range of metrics, including fuel savings, stability improvements, and increased cargo capacity. The results speak for themselves.
The Future of Bulbous Bows
Advancements in Design
As technology advances, so does the design and engineering of bulbous bows. Future innovations may lead to even more efficient and environmentally friendly designs.
Sustainability and Eco-Friendly Innovations
The maritime industry is under increasing pressure to reduce emissions and adopt sustainable practices. Bulbous bows are likely to play a pivotal role in achieving these goals.

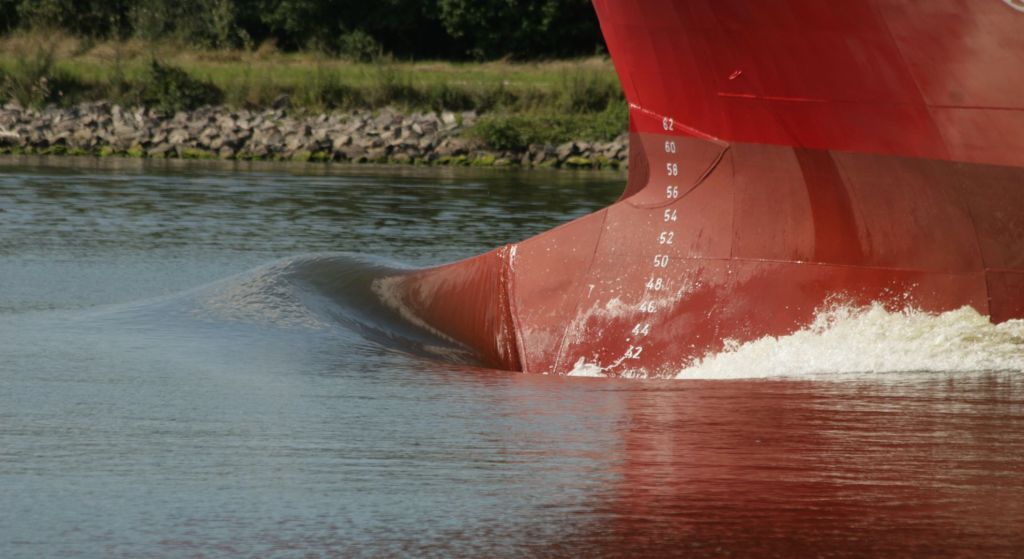

Challenges and Controversies
Criticisms and Drawbacks
Despite their many advantages, bulbous bows are not without their critics. Some argue that they may have limited effectiveness in certain conditions or on certain vessel types.
Environmental Concerns
People are worried about how bulbous bows might affect the environment, especially in marine environments that are already fragile. To deal with these problems, mitigation methods are being looked into.
Regulatory Compliance
As the use of bulbous bows becomes more widespread, regulatory bodies are developing guidelines and standards to ensure their safe and responsible implementation.
Bulbous bow may be a hidden hero in the world of maritime engineering, but its impact is undeniable. From enhancing fuel efficiency to improving seakeeping abilities, this unassuming innovation has reshaped the way ships traverse the seas. As technology improves and worries about the environment grow, the bulbous bow will continue to be an important part of the search for safer, more efficient, and environmentally friendly ways to travel by sea.
Related FAQs
What is the primary purpose of a bulbous bow on a ship?
The primary purpose of a bulbous bow is to reduce hydrodynamic resistance as a ship moves through water. By altering the flow of water around the hull, it helps the ship move more efficiently, saving fuel and improving overall performance.
Are all bulbous bows the same in terms of design and shape?
No, bulbous bows come in various shapes and sizes. There are standard teardrop-shaped designs, inverted designs, and even integrated designs that seamlessly blend with the ship’s hull. The optimal shape depends on the specific requirements of the vessel.
Can existing ships have bulbous bows retrofitted onto them?
Retrofitting a bulbous bow onto an existing ship is possible, but it can be a complex undertaking. It often involves dry-docking the ship and careful planning to ensure proper integration and placement.
Apart from reducing resistance, what other benefits do bulbous bows offer?
Bulbous bows can enhance a ship’s seakeeping abilities, reducing rolling and pitching motions, which improves passenger and crew comfort. They can also increase cargo capacity and contribute to fuel savings and environmental benefits.
Are there any environmental concerns associated with bulbous bows?
While bulbous bows can contribute to fuel savings and reduced emissions, there are concerns about their potential impact on marine ecosystems. Mitigation measures and regulatory guidelines are being developed to address these environmental concerns.
